GÖTTFERT Werkstoff-Prüfmaschinen GmbH
Booth number: HALL 2.1 - F16
www.goettfert.de
About us
GÖTTFERT is one of the leading manufacturers for material testing machines with a global sales and service network. Our product range covers Melt Indexers, Capillary Rheometer, Elongational Rheometers, Elastomer and Rubber Testing Rheometers, Online Process Rheometer, Lab Extruders with self running powder granules feeding, Flat Film Units with Analysis functions as well as production Systems with clean room requirements.
Address
Siemensstr. 2
74722 Buchen
Germany
E-mail: info@goettfert.de
Phone: +49 6281 4080
Internet: www.goettfert.de
No. 15 Xiaguangli
2-1211 Xiaoyum Tower
100125 Beijing
China
E-mail: joseph.zhuang@goettfert-china.com
Phone: +86 10 84832051/84831960.
Internet: www.goettfert-china.com/
Contact person:
Joseph Zhuang
General Manager
E-mail: joseph.zhuang@goettfert-china.com
Julia Volk
Sales Assistant
E-mail: sales@goettfert.de
Phone: +49 6281 4080
Products & Services
MELT FLOW INDEXER and Capillary Rheometer

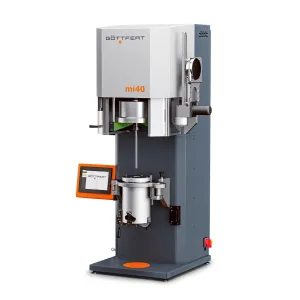

MELT FLOW INDEXER mi40
Precise MFR and MVR measurement according to ISO1133 procedure B and ASTM D1238 procedure B in basic version. Additionally multi-weight measurements according to ASTM D1238 procedure D to determine the flow rate ration (FRR) possible.
Highest precision and automation - incl. test-weight magazine - automatic test weight selection - single and multi test weight measurements - viscosity option
NEW -WSVGA Touchscreen 7”
NEW -Force controlled compressing/ejection up to 80 kg. The test-weight lifting motor can be used (position and time controlled) to pre-load the sample before the test or eject the material after the test. The maximum available force is 80 kg as a combination of the 21,6 kg load and the motor at full force.

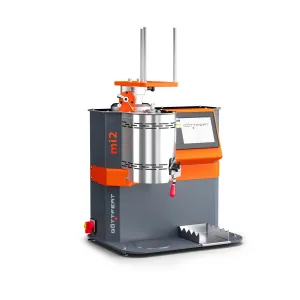

Melt Indexer mi2
Rheologie at its smartest ! Flexible, compatible, systematic.
Depending on the design variant, our mi2 can be used to run measurements in accordance with the following standards:
ASTM D1238
ISO 1133
ASTM D3364
Highest precision – half automated - equipped with test-weight Lifting system - single test weight measurements
NEW -WSVGA Touchscreen 7”
NEW-Displacement sensor 0,003mm/ impulse
NEW -Standardization of test chamber –easy change of test barrel for different applications (corrosive/abrasive)
NEW -Automatic pre-positioning of the piston by the new lifting system and parameter settings

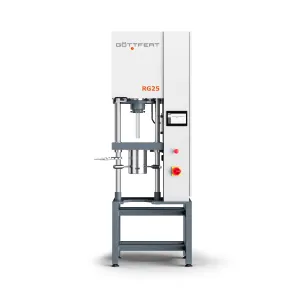

Capillary Rheometer Rheograph 25
Modular System
Increase the efficiency of your material analysis
The RHEOGRAPH is a modular high-pressure capillary rheometer system in acc. with ISO 11443 for determining the flow behavior and viscosity of thermoplastics and rubbers. This testing instrument is the result of decades of experience gained by GÖTTFERT with previous generations of models in the field of capillary rheometry. In addition to viscosity measurements in an extremely wide shear rate range, our capillary rheometer serves as a basic device for numerous add-ons for comprehensive material characterization.
